BSC100N10NSFG
品牌
供应商
分类
Power>>MOSFET (Si/SiC)>>N-Channel Power MOSFET
物料参数
| I[Dpuls] max: | 360.0A |
| R[th]: | 0.8K/W |
| P[tot] max: | 156.0W |
| V[DS] max: | 100.0V |
| Q[G](typ @10V): | 33.0nC |
| Polarity: | N |
| C[iss]: | 2200.0pF |
| C[oss]: | 730.0pF |
| R[DS (on)](@10V) max: | 10.0mΩ |

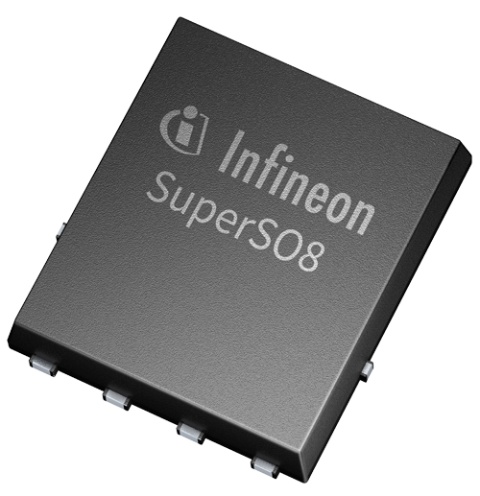

| Package: | SuperSO8 5x6 |
| I[D ](@25°C) max: | 90.0A |
| V[GS(th)]: | 3.0V |
| Operating Temperature max: | 150.0°C |
| Budgetary Price €/1k: | 0.72 |
