IRLR2705
品牌
供应商
分类
Power>>MOSFET (Si/SiC)>>N-Channel Power MOSFET
描述

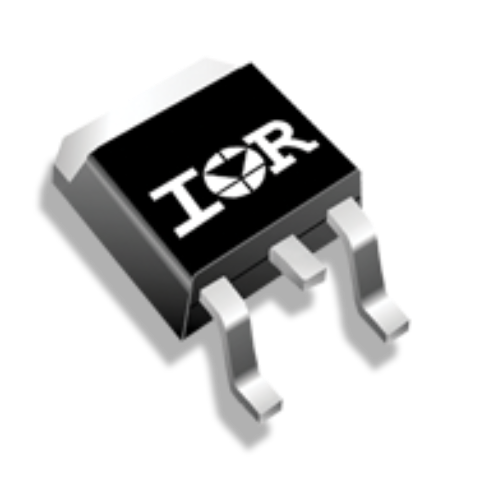

55V Single N-Channel IR MOSFET in a D-Pak package
物料参数
| Moisture Sensitivity Level: | 1 |
| Package: | DPAK (TO-252) |
| Polarity: | N |
| Q[gd]: | 9.3nC |
| R[thJC] max: | 2.7K/W |
| T[j] max: | 175.0°C |
| V[GS] max: | 16.0V |
| Mounting: | SMD |
| P[tot] max: | 46.0W |
| V[DS] max: | 55.0V |
| R[DS (on)](@10V) max: | 40.0mΩ |
| R[DS (on)](@10V) max: | 40.0mΩ |
| R[DS (on)](@4.5V) max: | 65.0mΩ |
| R[DS (on)](@4.5V) max: | 65.0mΩ |
| V[GS(th)]: | 1.5V |
| V[GS(th)]: | 1.5V |
| I[D ](@25°C) max: | 28.0A |
| I[D ](@25°C) max: | 28.0A |
| Q[G](typ @4.5V): | 16.7nC |
| Q[G](typ @4.5V): | 16.7nC |
| Operating Temperature max: | 175.0°C |
| Budgetary Price €/1k: | 0.18 |
